Completely customised
Every system is built to your specification.
H2C0 systems are not off-the-shelf boxes. We start from your load profile, site and hydrogen supply and engineer the system around them: power, voltage, stack, enclosure, controls and storage. Design, integration, commissioning and O&M are done in-house, and we take on co-development and licensing for stationary and marine applications.
Power and output

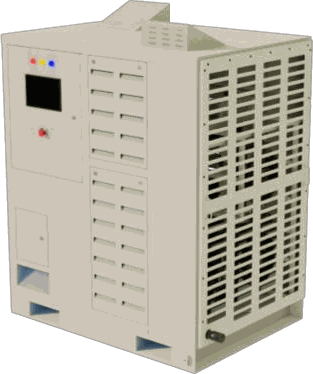

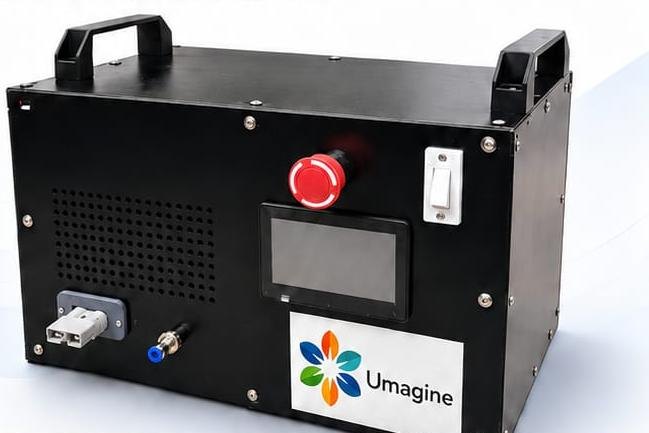

100 W to 2 MW. 12 – 96 VDC, configurable, on the air-cooled series; 415 VAC three-phase with a hybrid inverter on the liquid-cooled series.
Stack and cooling
Open-cathode (air-cooled) or liquid-cooled PEM stacks, with cell count, coolant architecture and power output matched to the duty.
Enclosure and form factor
Compact portable units, IP5X cabinets or containerised power systems, with rugged form factors for harsh sites.
Controls and integration
PLC-based control with Modbus / CAN, integrated with batteries, solar PV, the grid or an electrolyser as a hybrid microgrid.
Site conditions
Operating envelopes from −20 to +50 °C (air-cooled) and −40 to +50 °C at up to 5,000 m (liquid-cooled), with custom engineering for low-temperature, high-altitude sites.
Hydrogen supply
Storage sized to the autonomy you need: Type 3 cylinders from 3 to 200 L at 350 bar, or hydrogen made on site by electrolysis.
